Overview
Time Groups specify which hours and days to start and stop dialing. Match them with Time Conditions to have more control over Inbound calls and transfers outside of working hours.
Contents
Add a Time Group

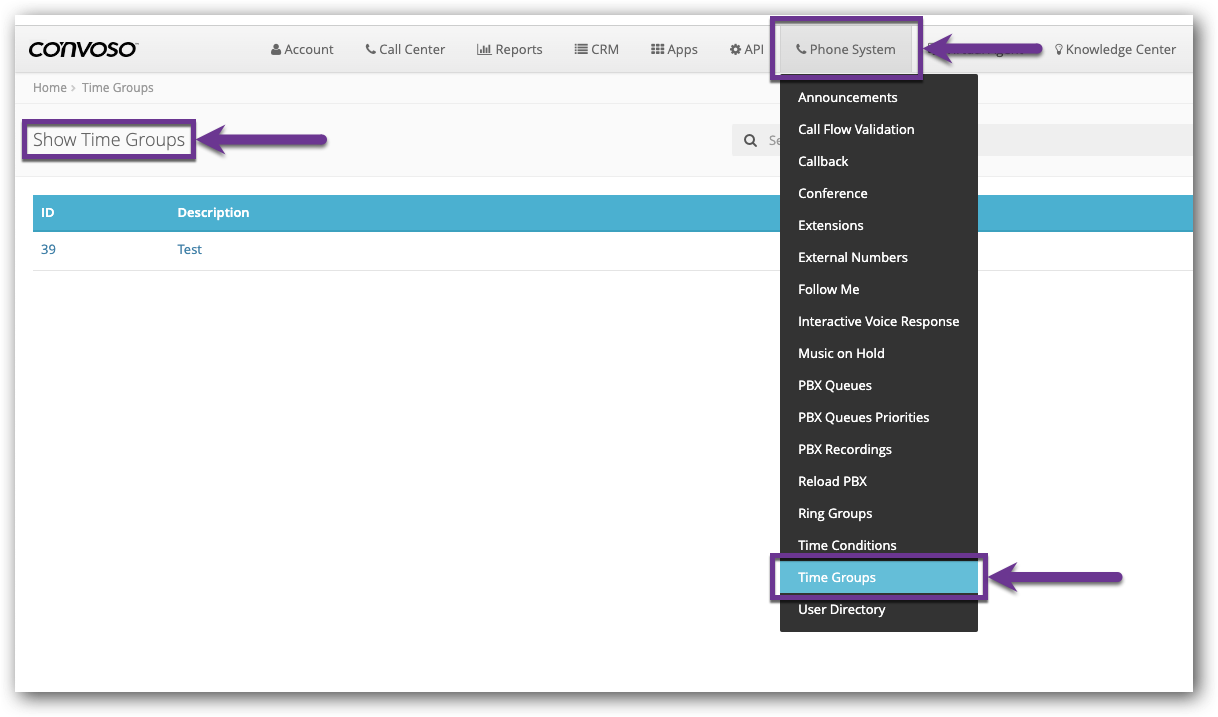

1.) Click the Phone System main menu.
2.) Click the Time Groups menu option.
The Show Time Groups page will open.

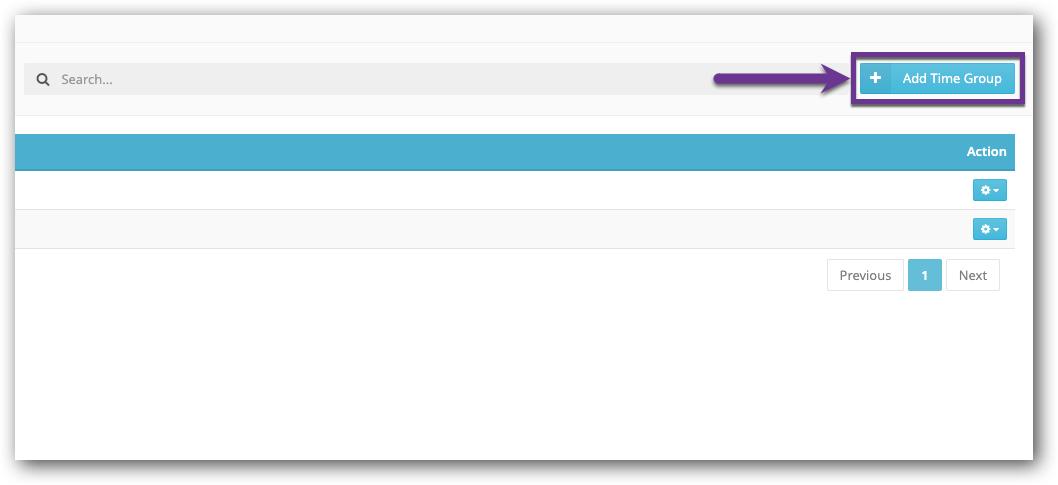

3.) Click the Add Time Group button.

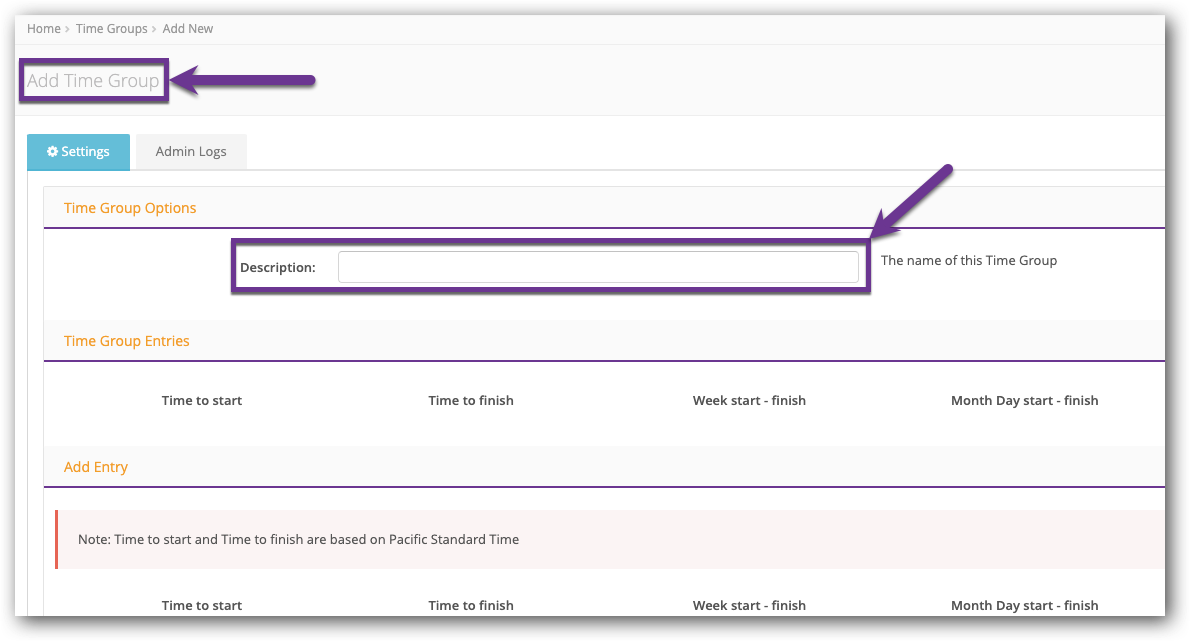

The Add Time Group page will open.
4.) Enter a Description for your Time Group. This is how the Time Group will be identified in other places in the system.

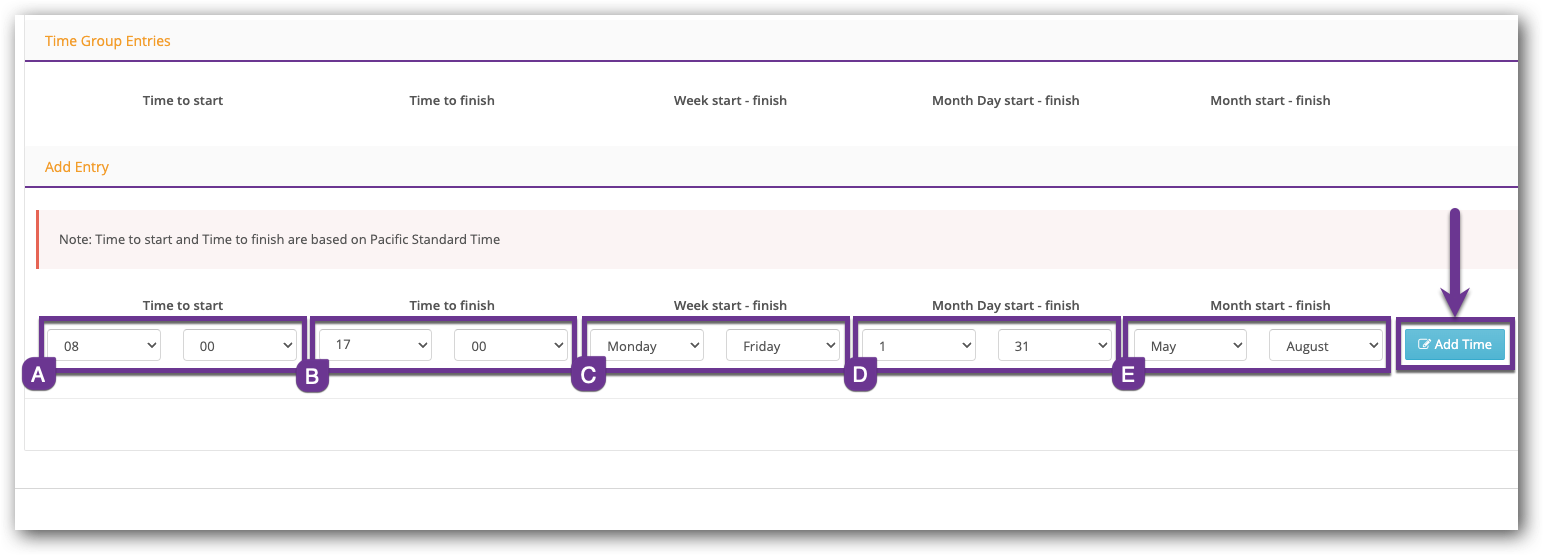

5.) Configure Time Group Entries:
- (A) Time to start: Select the hour and minutes for the beginning time for the entry. (This setting uses a 24-hour clock.)
- (B) Time to finish: Select the hour and minutes for the end of the time entry. (This setting uses a 24-hour clock.)
- (C) Week start-finish: Select the days of the week for time entry.
- (D) Month Day start-finish: Select the days of the month for the time entry.
- (E) Month start-finish: Select the months for the time entry.
6.) Click the Add Time button.
Repeat steps 5 & 6 for all entries in the Group.

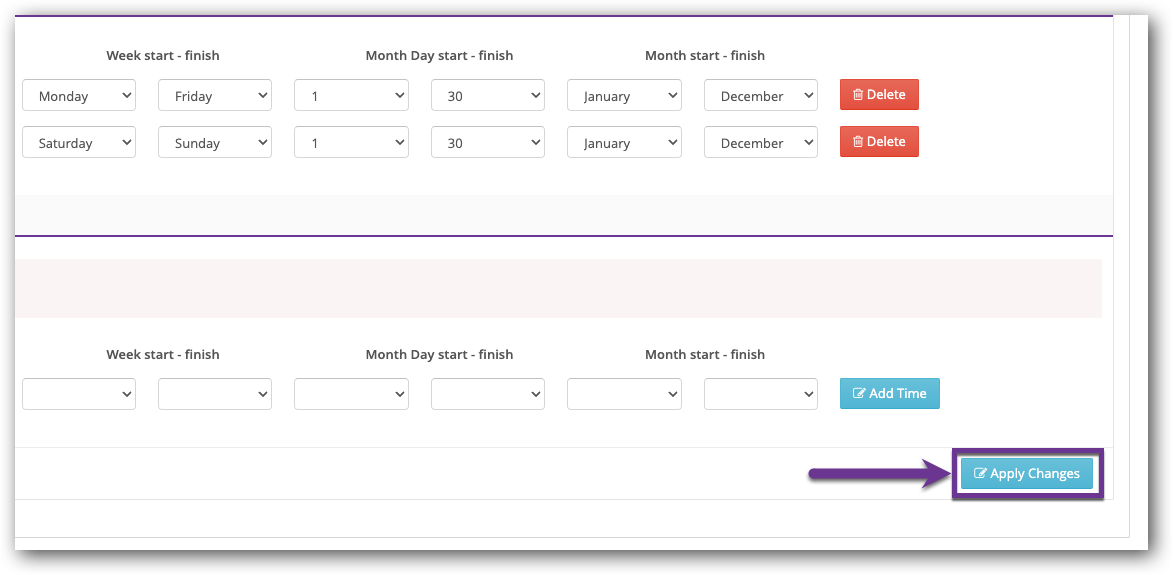

7.) Click the Apply Changes button.

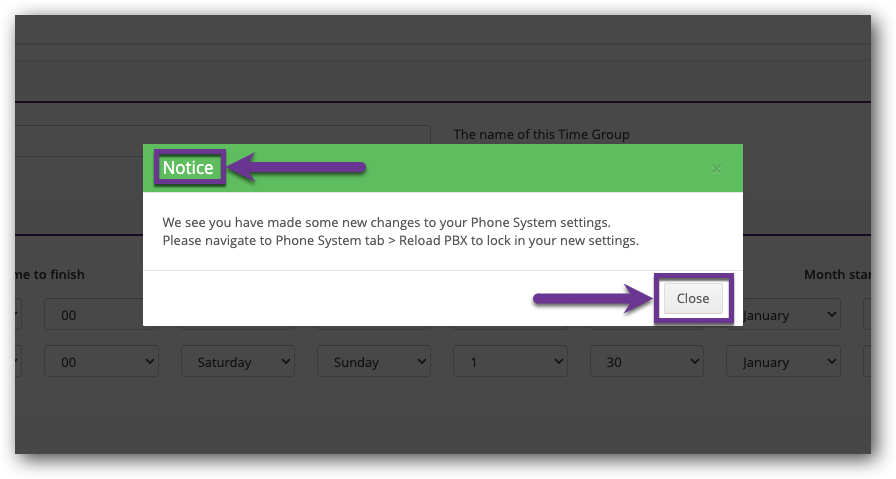

A notice will open, prompting you to reload the PBX to activate your changes.
8.) Click the Close button.

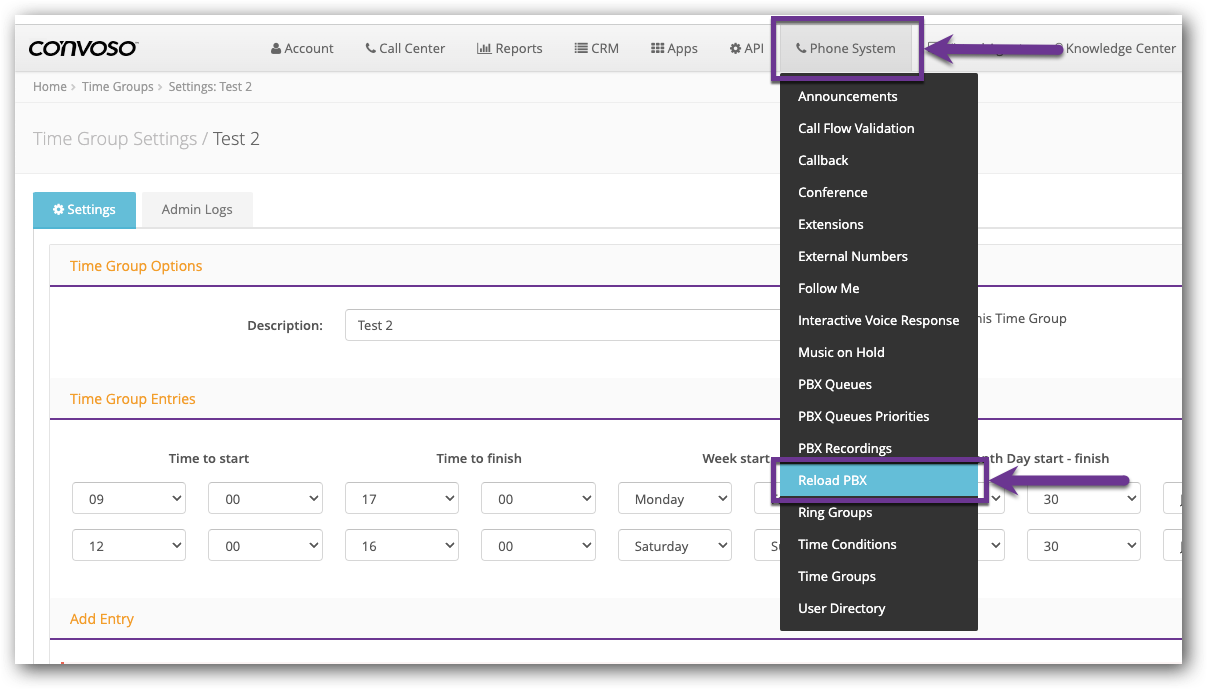

9.) Click the Phone System main menu.
10.) Click the Reload PBX menu option.

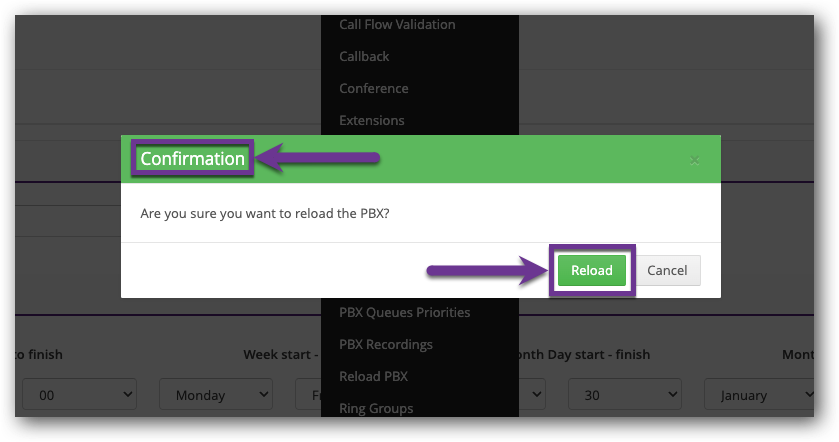

A Confirmation window will open.
11.) Click the Reload button.
The Reload PBX page will open. Changes may take up to fifteen minutes to take effect.
