Overview

There are various Reports you can use under Custom Reports to see the performance and success of your Voso.ai and Voso.ai Scenarios and Campaigns.

---

Contents

• Accessing the Reports
  • Save Report
  • Notes on Running Reports and Report Notifications
• IVA Campaign Report
• IVA Voice Success Report
• IVA Text Success Report
• IVA Success Funnel Report
• IVA Scheduled Calls Report
• Speech to Text Report

---

Accessing the Reports

1.) Click the Reports main menu.

2.) Click the Custom Reports menu option.

The Reports page will open.

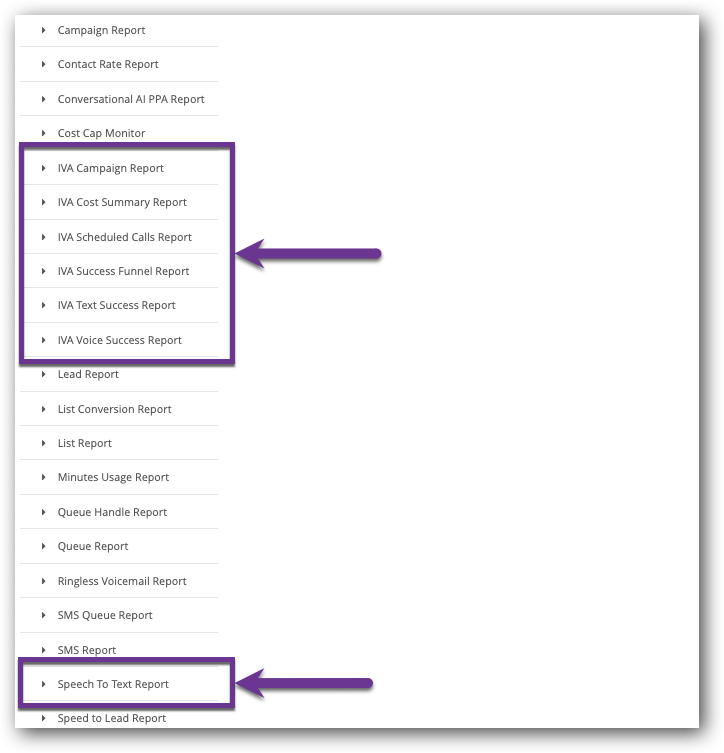

In the list of Common Reports in the left panel, you will find the IVA-specific Reports that are available:

• IVA Campaign Report

• IVA Voice Success Report

• IVA Text Sucess Report

• IVA Success Funnel Report
• IVA Scheduled Calls Report
• Speech to Text Report

3.) Click on any of the Report names to open the page for that Report.

4.) For each Report, you can then select filters and dates for the Report.

5.) Users can export Reports to a CSV file or Save the Report to be run with the same criteria in the future.

---

Save Report

There are two options to save any of your IVA Reports.

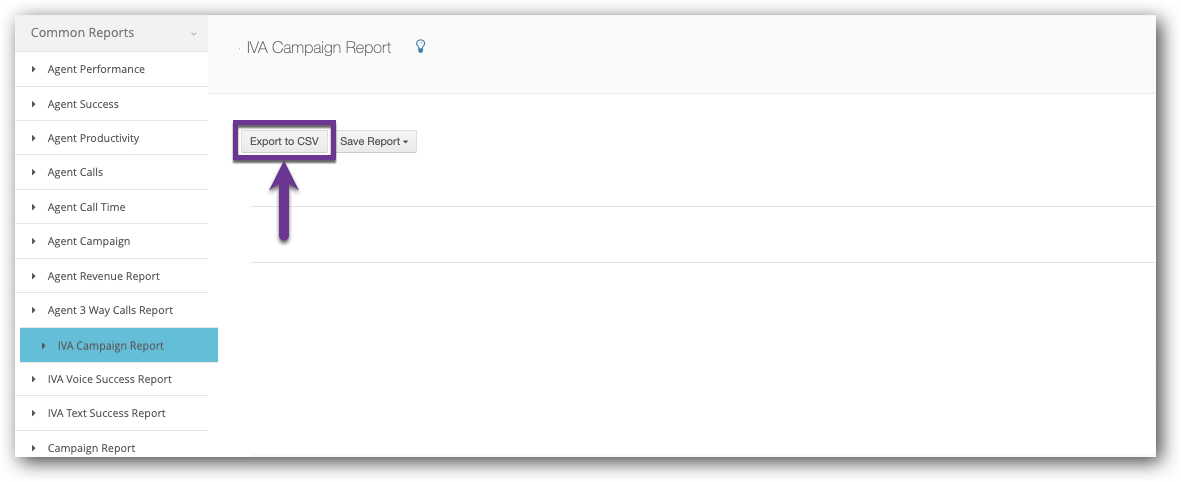

1.) Click Export to CSV button to download as a CSV file to your device.

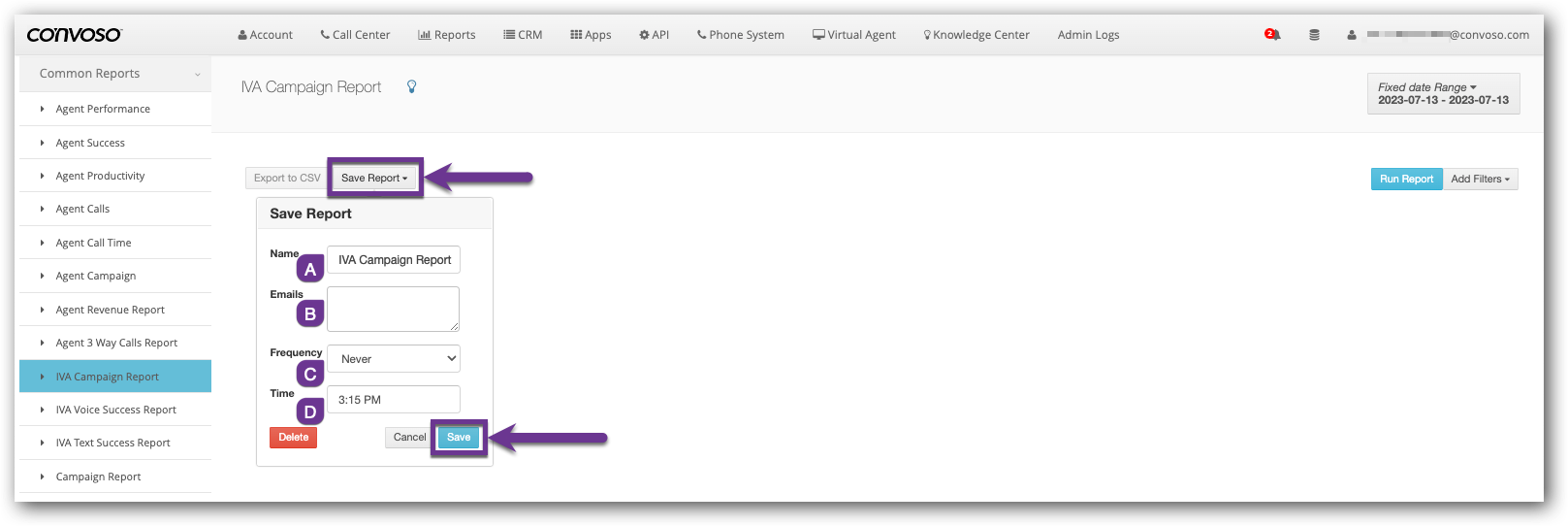

1.) Alternatively, click the Save Report button to open the Save Report pop-out.

2.) Configure the Save Report fields:

• (A) Name: Specify your preferred Name.
• (B) Emails: Specify which email(s) will receive the report.
  • i.e., admin1@emailadress.com, admin2@emailadress.com, etc.
• (C) Frequency: Drop-down to specify a frequency for the Report to re-run and send emails.
• (D) Time: Specify when you want your report to be saved.
  • If not repeating this Save, then leave it at the Default of the current time.
• (E) Click Save when complete.

---

Notes on Running Reports and Report Notifications

If the Reports will take a while, you can navigate away from the page and perform other tasks.

When the Report has finished running, you will get a Notification in the Notification Center, a badge will appear on the Bell Icon in the top-right.

• If you stay on that page, the Report will load when it has finished running.

• If you leave the page, once the Report has finished, the Notification Center will have a View Report link for you to load the Report immediately.

• When staying on that Report page, a window will open, notifying you if no data was returned when running the Report.

• If you leave the Report page and there is no data in the Report, you will not get a Notification in the Notification Center for the Report.

---

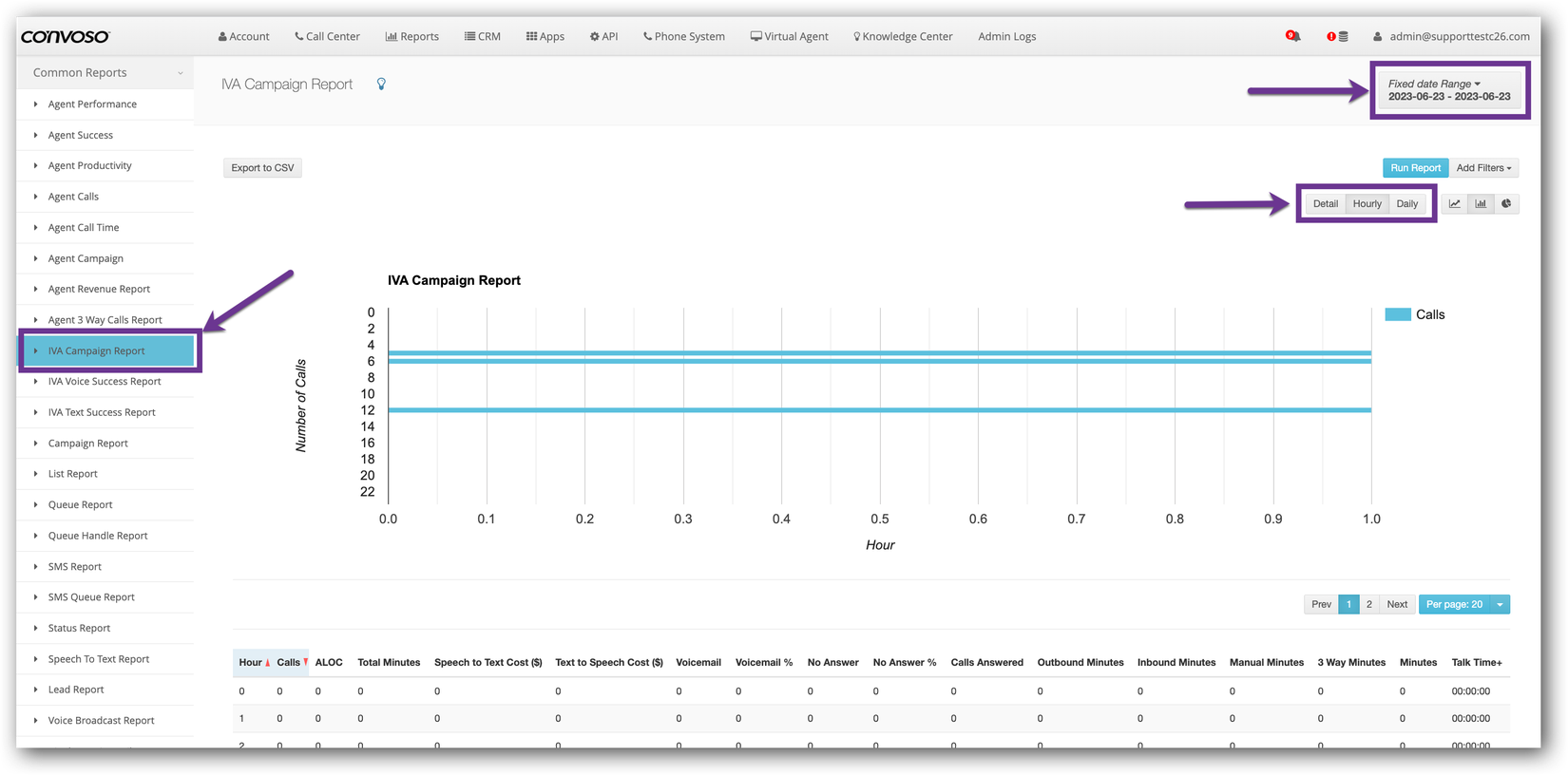

IVA Campaign Report

This Report shows the statistics of calls, breakdowns for minutes used, cost, etc.
This is a rundown of how the Campaign is doing overall.

• Campaign
  • Number of calls
  • Average length
  • Total minutes
  • Cost amount of STT
  • TTS costs
  • Voicemail
  • No answer
  • Etc.

Users have the ability to filter this Report based on various conditions:

• Date Range

• Call Types

• Campaigns

• Queues

• Statuses

• Lists

• Talk Time

Columns in the table:

• Campaigns
  Names of IVA Campaigns.

  • # of Calls
    Number of calls made per time range per Campaign.

  • Average Length of Calls (ALOC)
    Total time of calls/number of calls, measured in minutes.

  • Total Minutes
    Total time of all calls, measured in minutes per Campaign.

  • Speech to Text Costs
    Cost of Speech-to-Text per time range per Campaign.

  • Text to Speech Costs
    Cost of Text-to-Speech per time range per Campaign.

  • Voicemail %
    Percent of Voicemails caught per time range per Campaign.

  • No Answer %
    Percent of no answers caught per time range per Campaign.

  • Connected
    ALOC calculation

  • Outbound Minutes
    Total Minutes

  • Inbound Minutes
    Total Minutes

  • Manual Minutes
    Total Minutes

  • 3way Minutes
    Total Minutes

  • Minutes
    Total Minutes

Users have the ability to view Reports with a bar graph:

• X-Axis
  # (Number)

• Y-Axis
  Campaigns

• Bars:

  • Number of calls

  • Average Length Of Calls (ALOC)

---

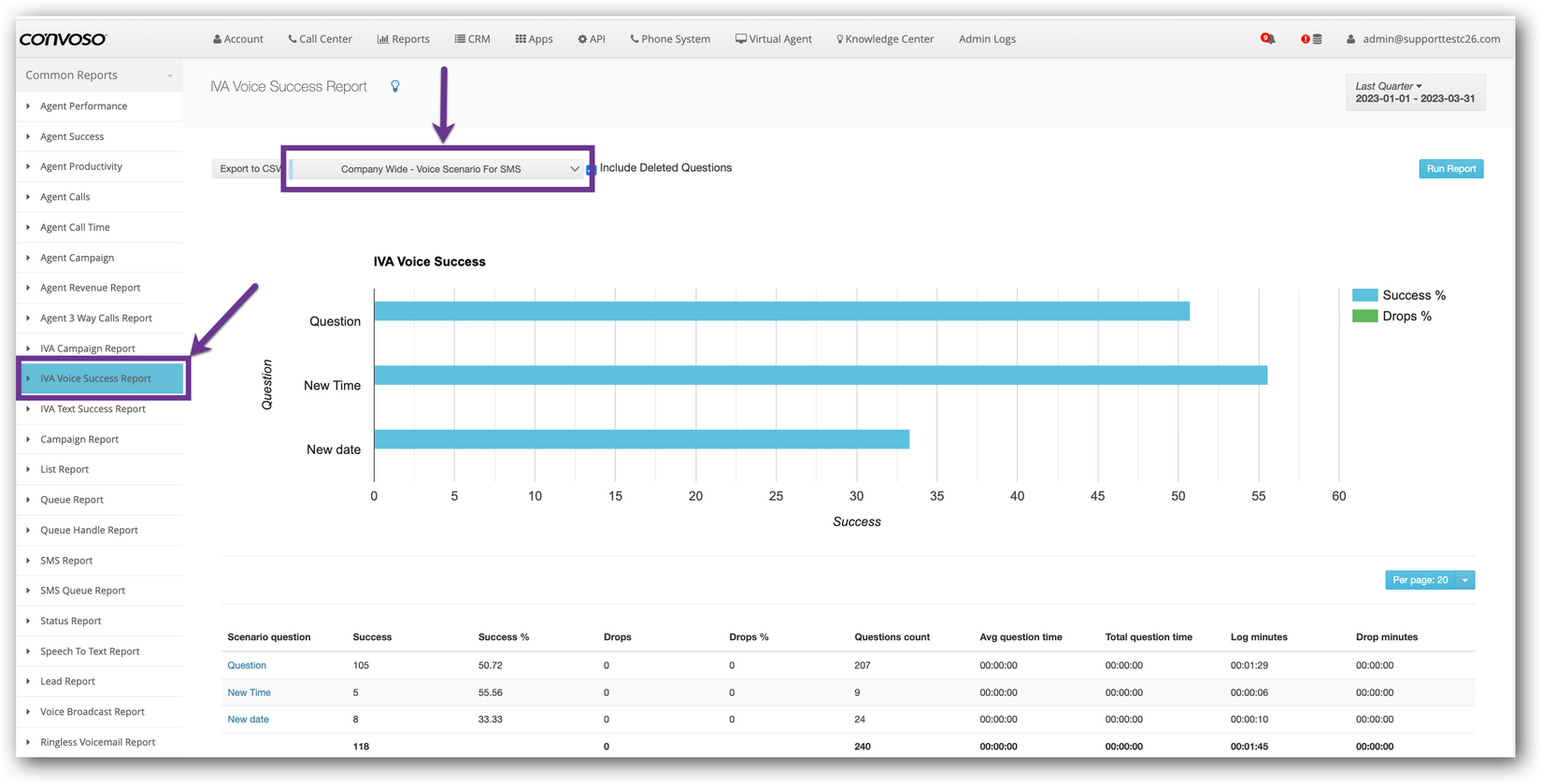

IVA Voice Success Report

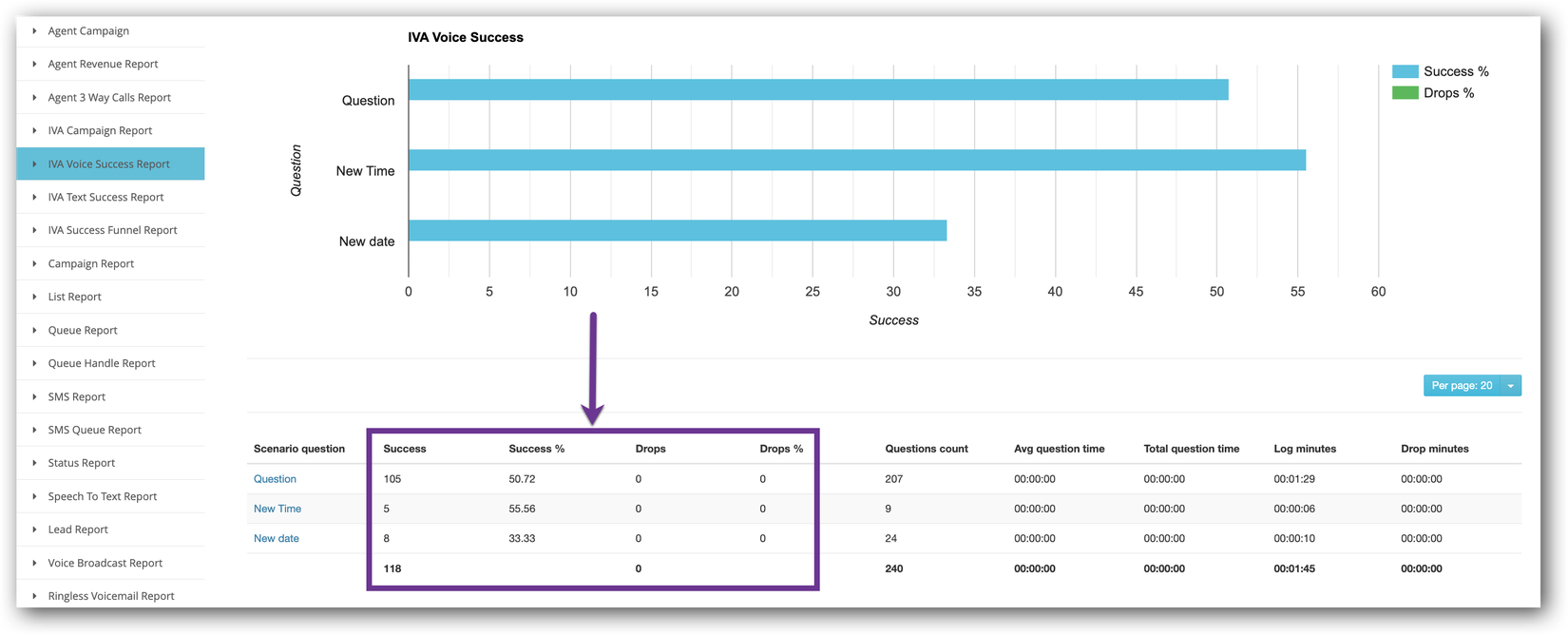

The IVA Voice Success Report is used to measure the success via the Questions asked by the IVA. Users can detect which Questions were successful (where Intent was detected) and which were not successful.

You must select a Scenario to run this report.

The Success of Questions in IVA Scenarios.

• Success and Drop Percentage.

Drop is not a call drop, it is a call hang-up.

• When the Lead received the Question, how many Intents were successfully recognized vs. how many Leads hung up during that first Question.

Users can use this Report to see how changes can be made in the Scenario; if hang-ups are happening in the intro before the Question, the Report will not show that they hung up on the Question.

• Helps capture the DNC sooner.

For this Report, you need to select a specific IVA Scenario to check the Success of that particular Scenario.

1.) In the Select a scenario drop-down, there is a list of Scenarios for that Account.
Select the Scenario, and if necessary, click the Include Detailed Questions checkbox.

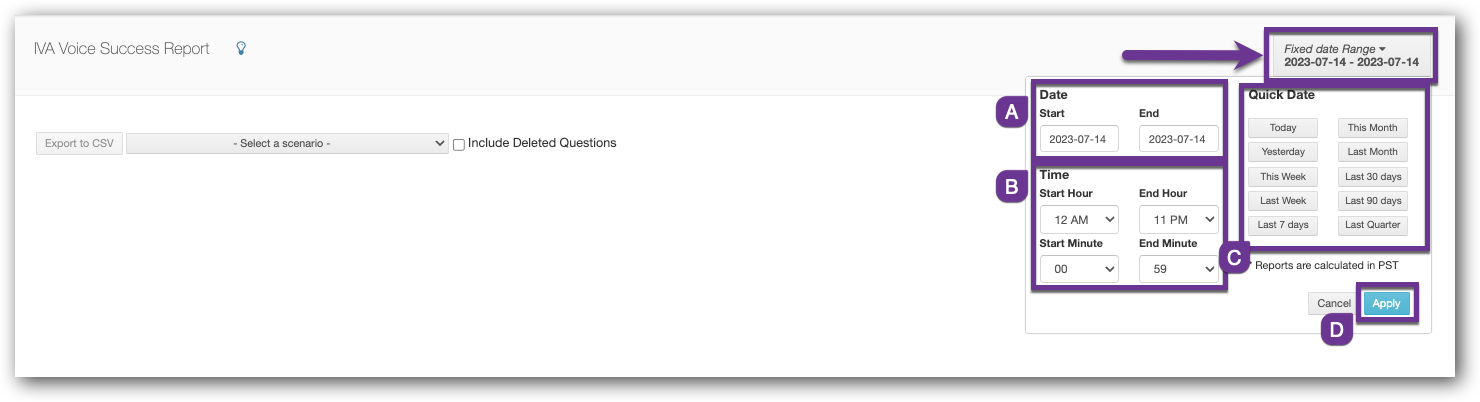

2.) Select a Date Range in the Filter Date Range box.

• (A) The Start and End Dates fields: Allow you to enter a custom date range.
• (B) Quick Date buttons: Allow you to auto-fill the Date fields with the range options.
• (C) Time fields: Allow you to specify Start and End time hours and minutes.
• (D) Click Apply to save your chosen Dates and Times.

Note: This Report does not include any additional filters for Breakdown etc., as other Reports do.

3.) Click the blue Run Report button.

---

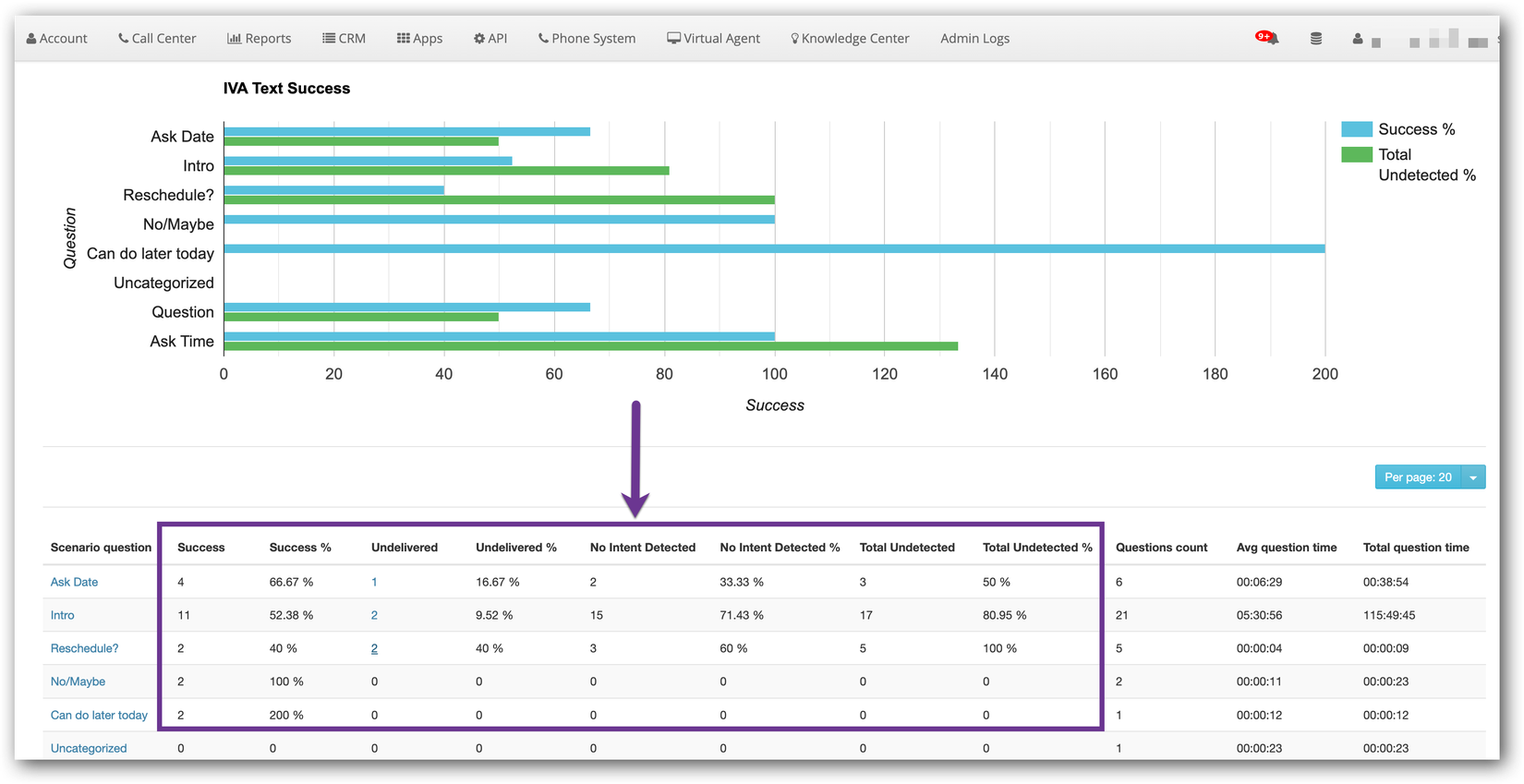

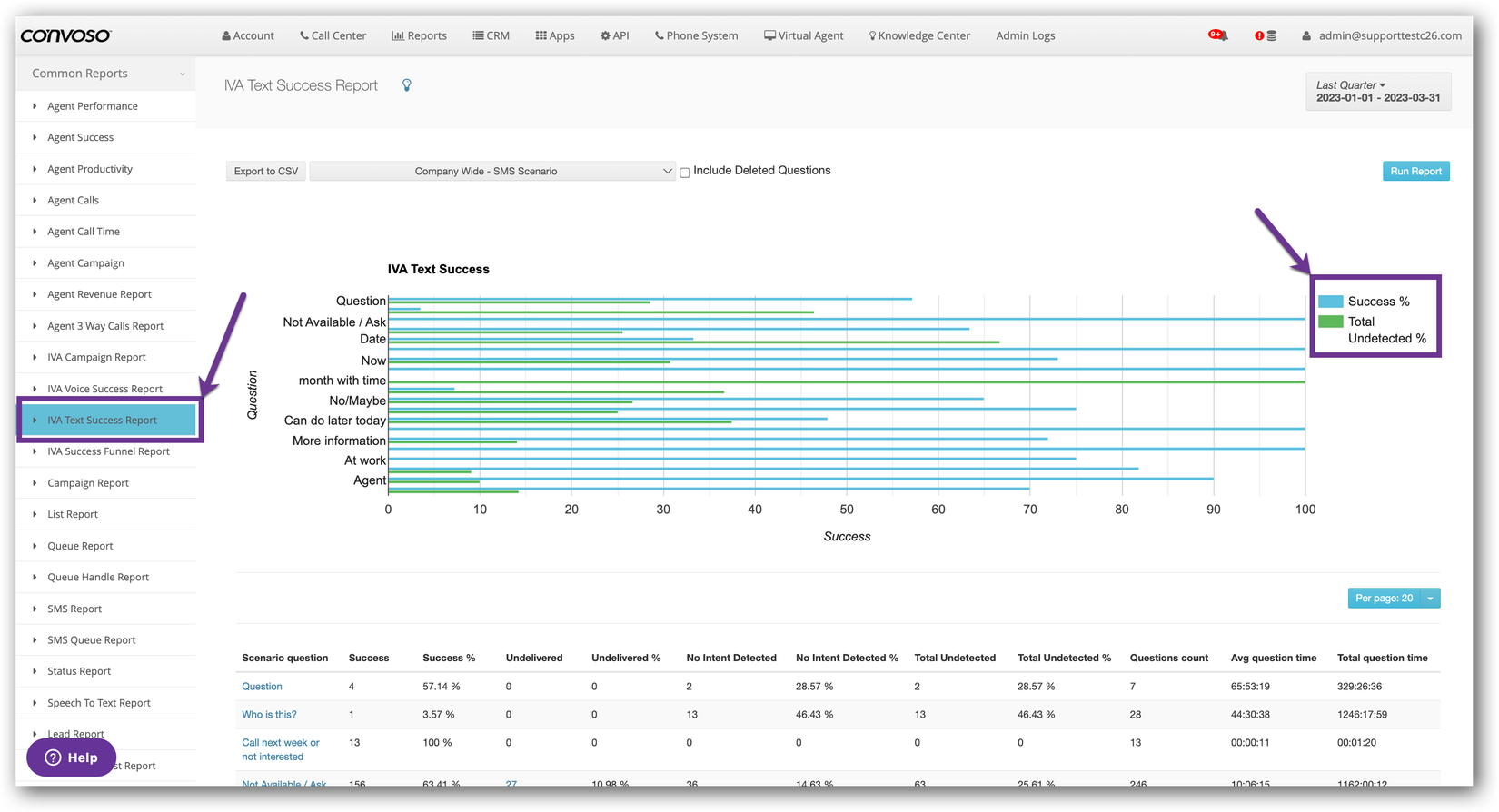

IVA Text Success Report

The Report displays the success percentage of IVA Scenario TEXT questions.

From this report, you can view whether Intent was Detected and the success of the Text question.

This report displays the graph with:

• Success Percentage

• Total Undetected Percentage



---

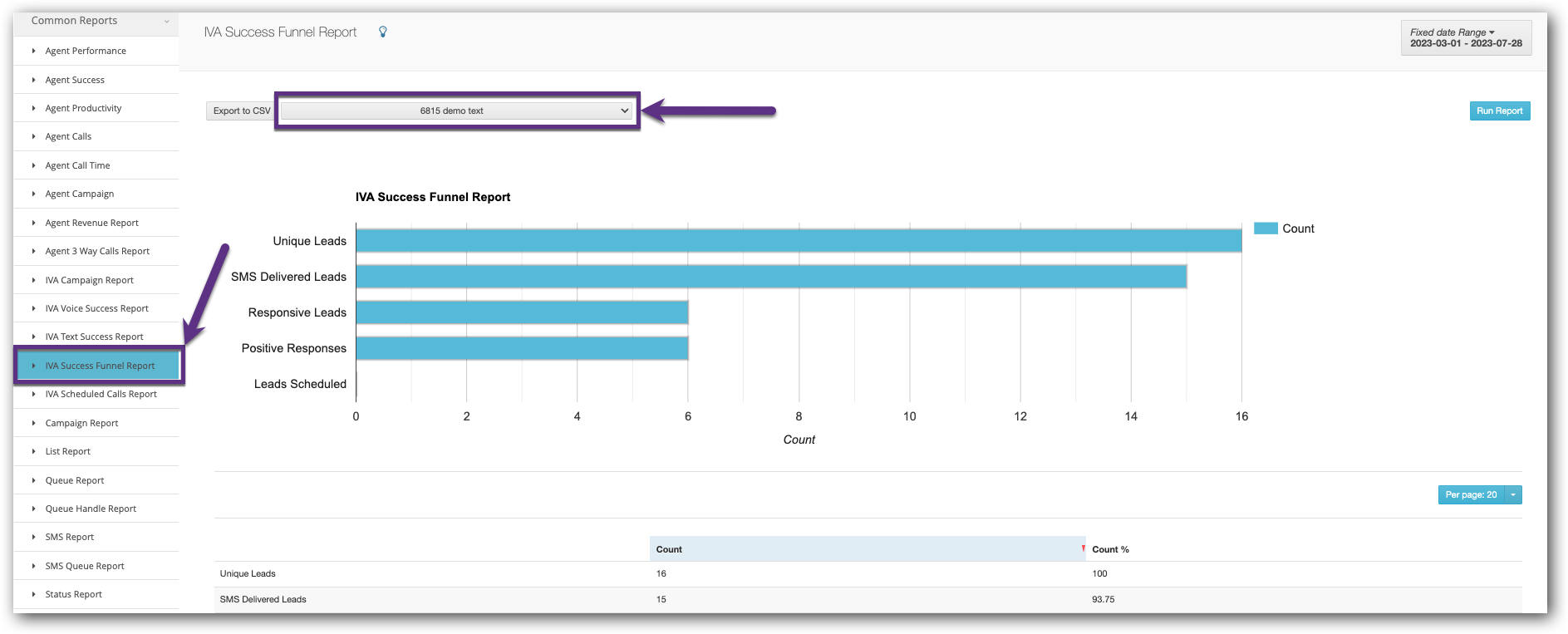

IVA Success Funnel Report

This Report allows users to analyze the success funnel for Leads associated with particular Lists and Campaigns, enabling them to identify patterns and trends.

The IVA Success Funnel Report aims to visually demonstrate the progression of leads within the Voso.ai Scenario, starting from the total number of uploaded Leads and ending with successful interactions where the Lead is transferred to an Agent.

This is another report where you will choose a specific Scenario to run.

This report displays the graph with total Counts for:

• Unique Leads
• SMS Delivered Leads
• Responsive Leads
• Positive Responses
• Leads Scheduled

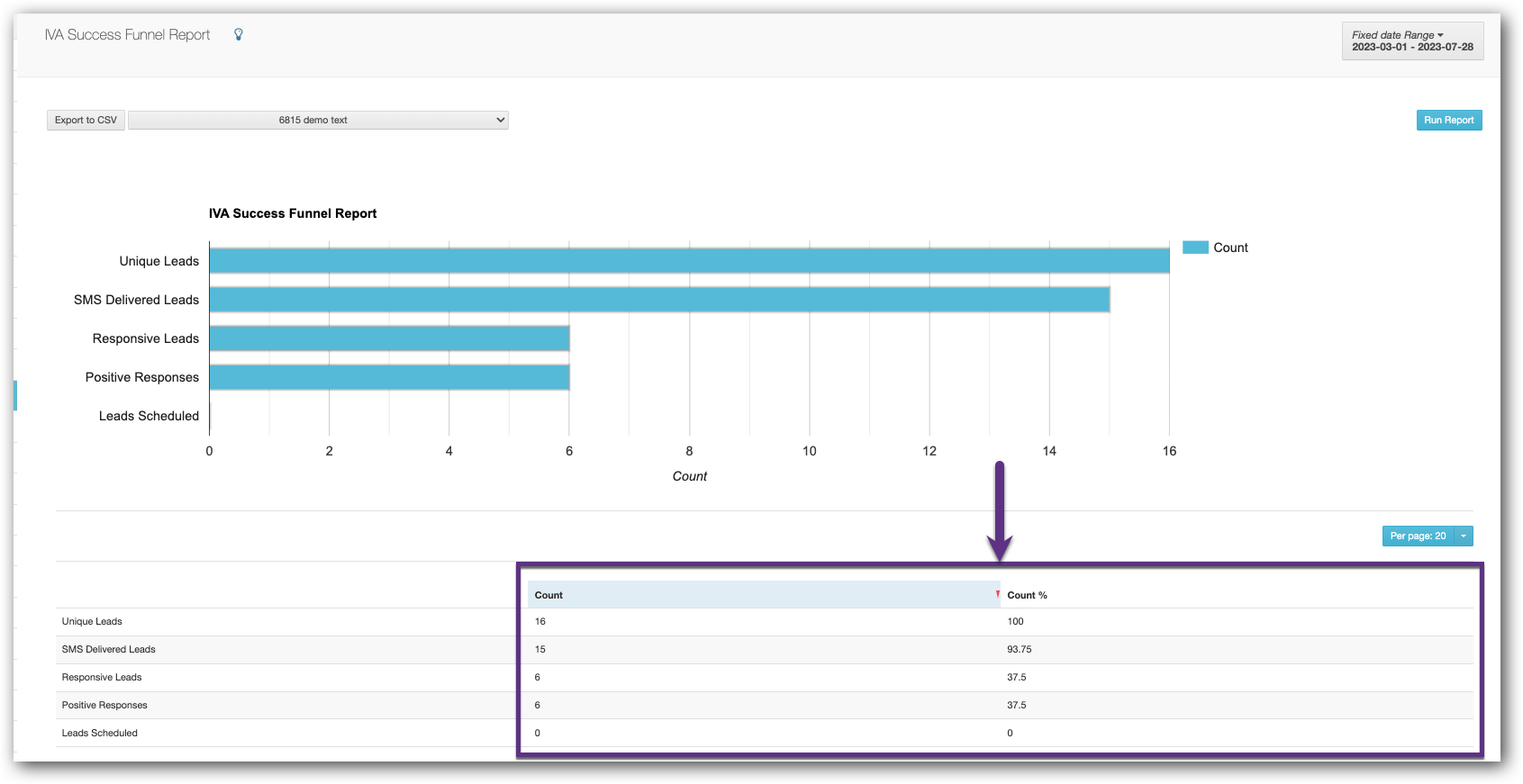

The results table displays totals for the same variables in the graph and adds the percentage that each accounts for of the total Leads in the Scenario.

---

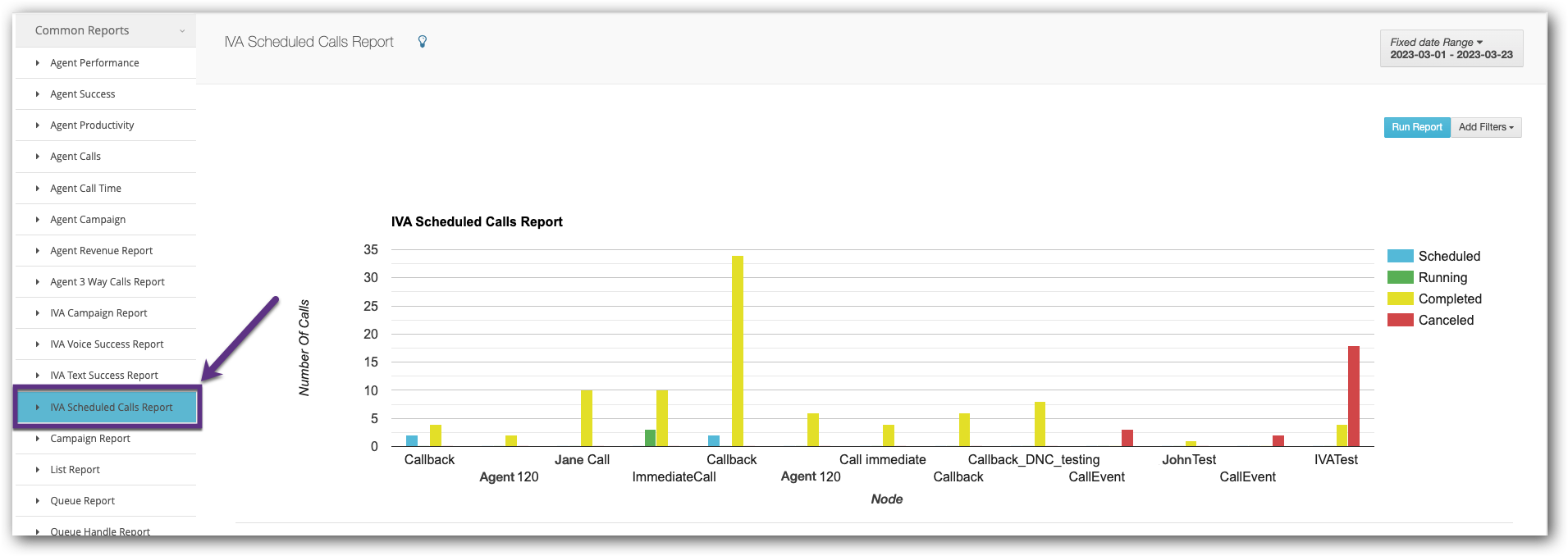

IVA Scheduled Calls Report

This Report tracks the Status of Calls scheduled through an IVA Scenario to report on the success of the Scenario.

This Report enables users to view the success of the calls scheduled and their Statuses.

This report's bar graph displays all of these Call Statuses:

• Scheduled
• Running
• Completed
• Canceled

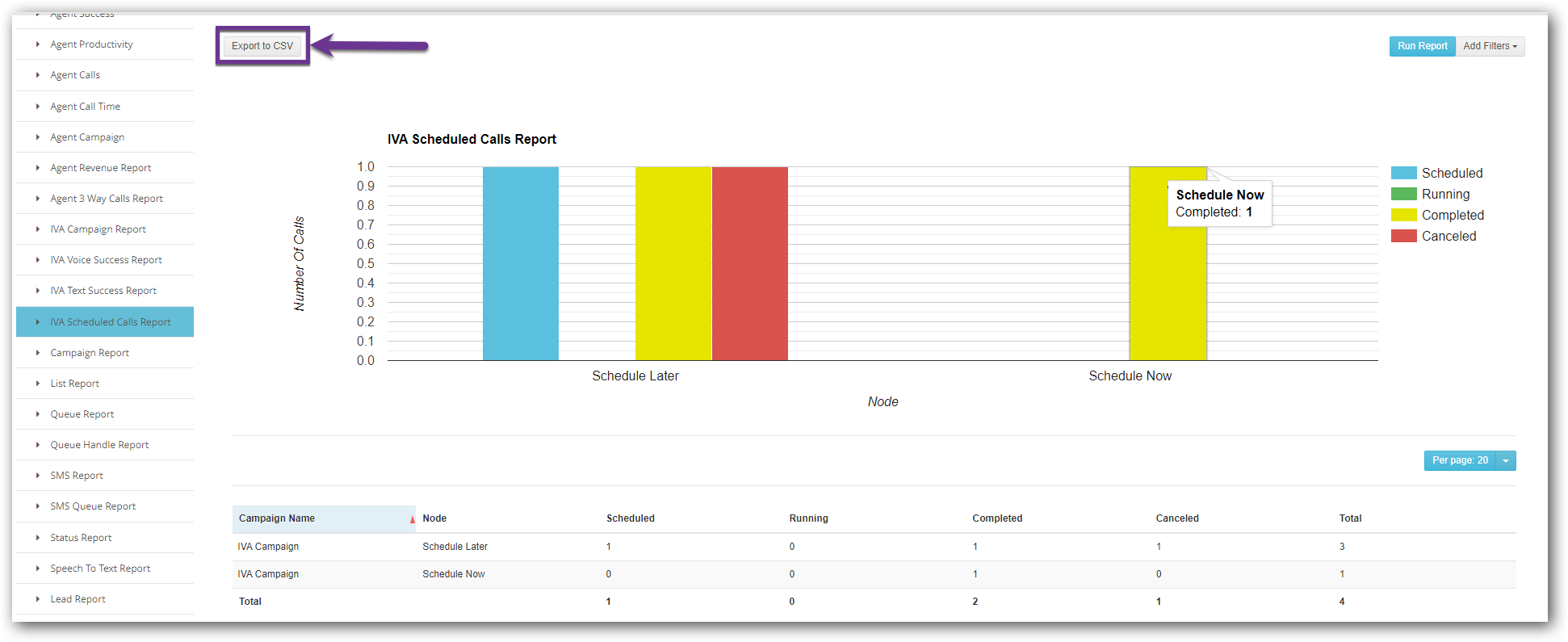

Export includes all presented columns and data points available in the report:

• Campaign
• Node
• All Scheduled Call Statuses
• Total

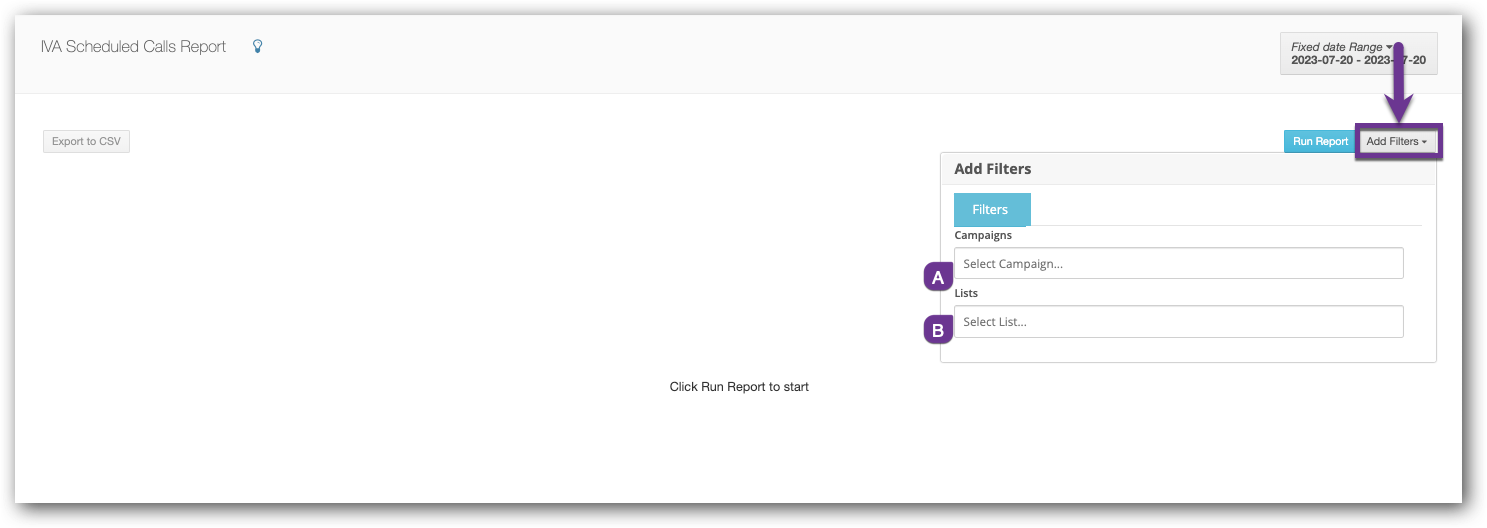

Filter options:

• (A) Campaigns
• (B) Lists

---

Speech to Text Report

Works similarly to Virtual Agent Logs, but results are grouped by text and count percentage along with a pie chart.

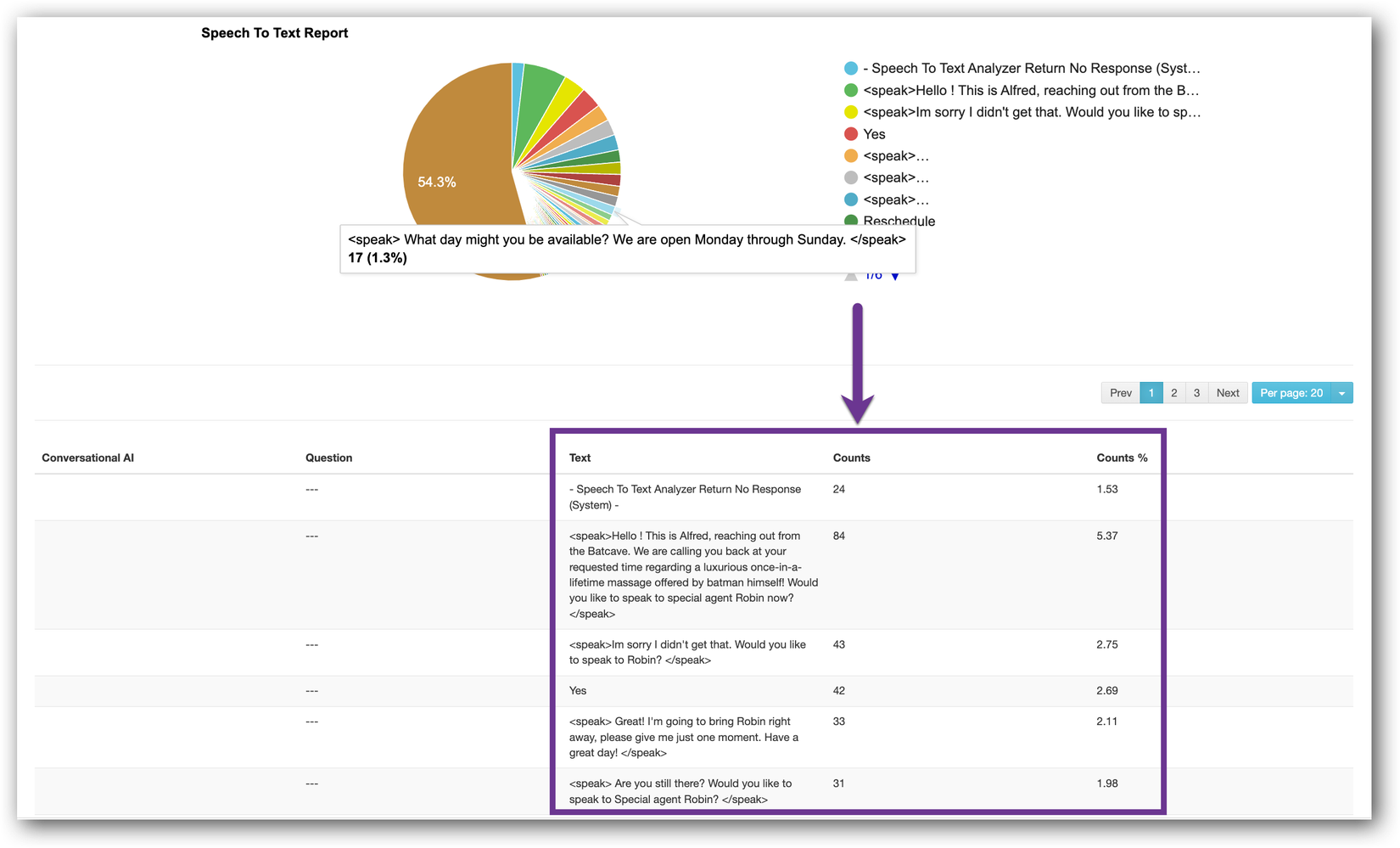

In the Speech-to-Text Report, you can view all the Prompts from the IVA in the results table and in the pie chart.

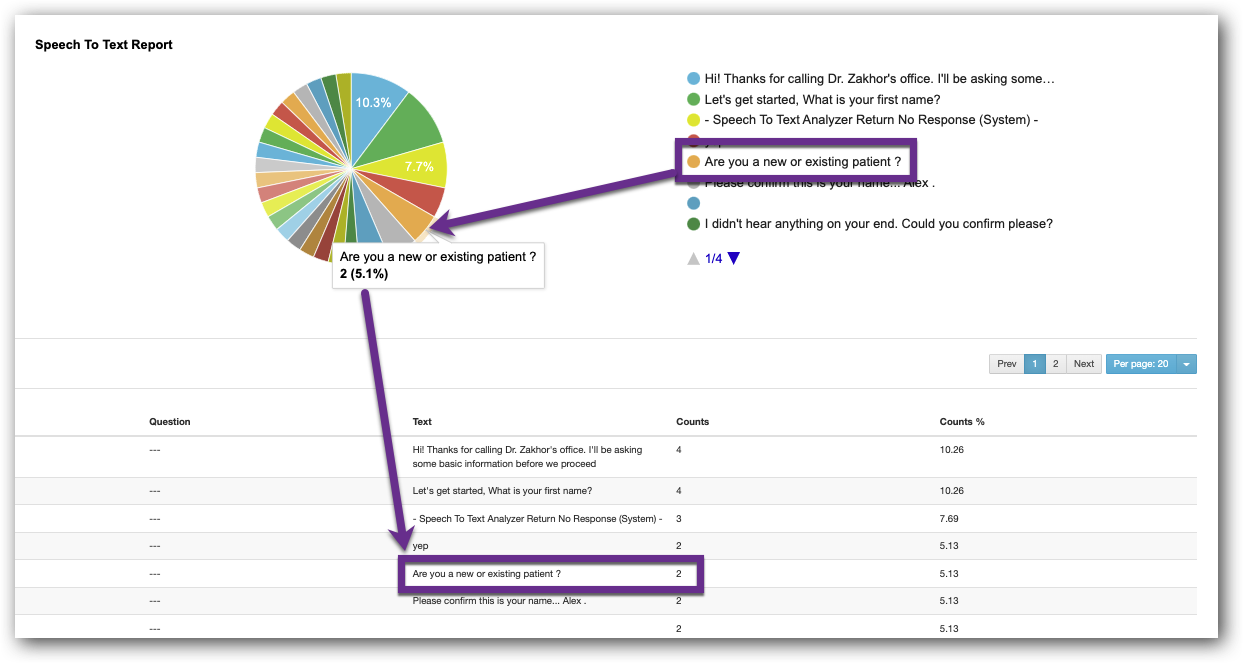

• The pie chart is color-coded; hover the cursor over each slice to see the Prompt.

• The Pie Chart Legend to the right of the pie chart shows the colors that go with each Prompt.

The results table shows the Prompts for the IVA in the Text column.

In the Virtual Agent Logs, under the Reports main menu and the Virtual Agent Logs menu option, you can view and cross-reference the Prompts you found in the Speech-to-Text Report.

• To learn more about Virtual Agent Logs, see Using Virtual Agent Logs.
