Overview

Convoso Connect is the interface we use to communicate with third-party apps via API (Application Programming Interface). The Convoso Connect allows Convoso to update or be updated by third-party systems. Admins can also configure their Convoso Connect to trigger based on specific events.

---

Contents

• Before You Begin
• Adding a Convoso Connect

---

Before You Begin

• Convoso Connect works with API to connect with third-party systems.
  • To learn more about API, see What is an API and How Do I Use it?

---

Adding a Convoso Connect

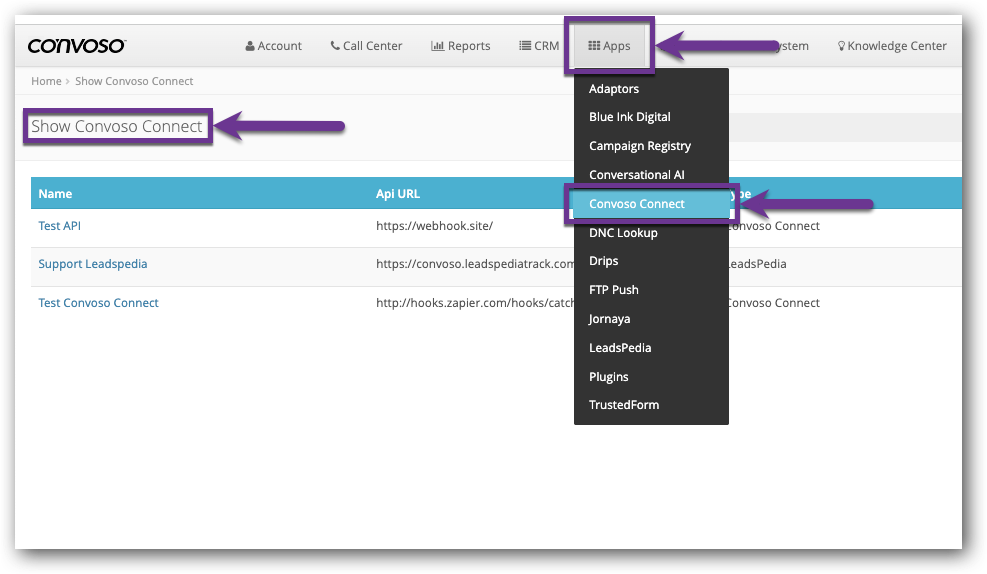

1.) Click the Apps main menu.

2.) Click the Convoso Connect menu option.

The Show Convoso Connect page will open.

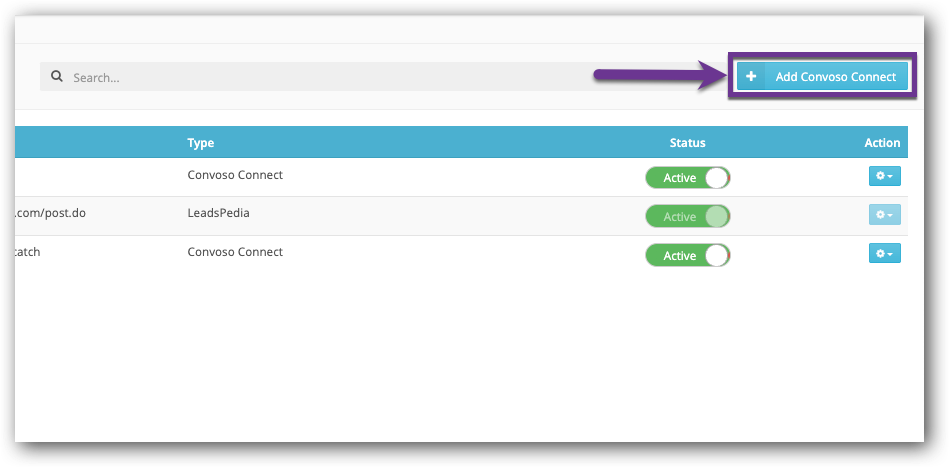

3.) Click the Add Convoso Connect button.

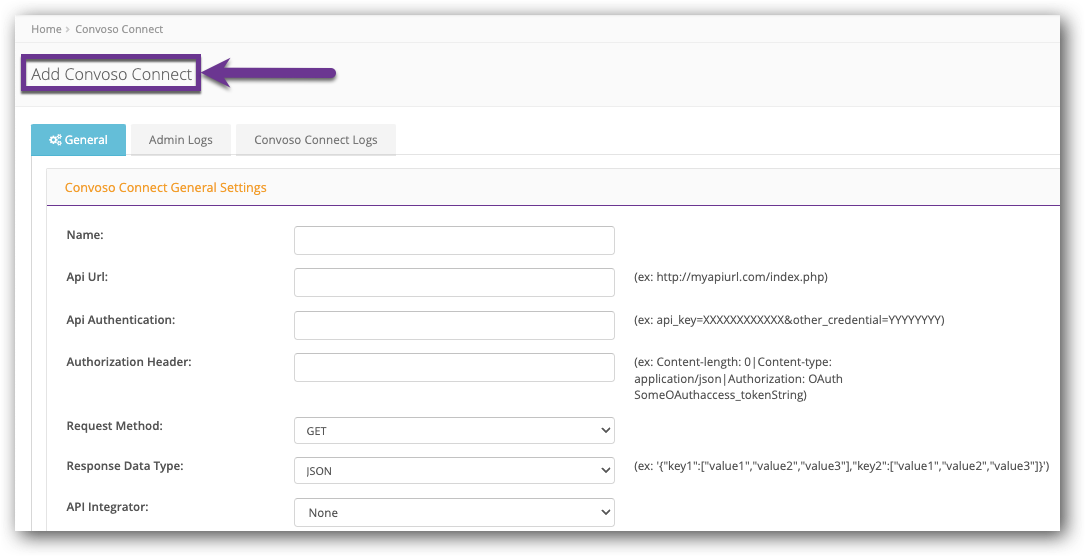

The Add Convoso Connect page will open. Displaying the General Tab.

4.) Fill the following fields with your Vendor information in the Convoso Connect General Settings section.



Note: Three settings marked G, H, and I are optional and not required for your Convoso Connect to work.

• A: Name  –
  Vendor name is used for reference only and can be modified.
• B: API URL –
  Enter the API URL of the Vendor.
• C: Api Authentication  –
  If the Vendor is using an Auth Token, put that in this section.
• D: Authorization Header -
  (ex: Content-length: 0|Content-type: application/json|Authorization: OAuthSomeOAuthaccess_tokenString)
• E: Request Method –
  • GET – API Vendor will be posting a Lead into the system.
  • POST – The system will be posting Leads to the third-party API Vendor.
• F: Response Data Type –
  Select the Data Type that is compatible with the third-party API.
  • JSON - (ex: '{key1:[value1,value2,value3],key2:[value1,value2,value3]}')
  • XML - (ex: '<Values><value>value1</value><value>value2</value></Values>')
  • TEXT - (ex: 'value1,value2,value3')
• G: API Integrator -
  Drop-down for integrations built into the Convoso system.
  • None -
    This option is for when you do not need an API Integrator.
  • Hubspot -
    A CRM software.
  • Blue Ink Digital -
    A Lead Generation service.
• H: Delimiter -
  To specify which character to use as a boundary between separate keys and values.
• I: Response Key -
  To declare a specific key and value to parse from the third-party API's response.
• J: Adaptor ID  –
  If the Request Method is POST, we need to select the Adaptor ID assigned to the Vendor.

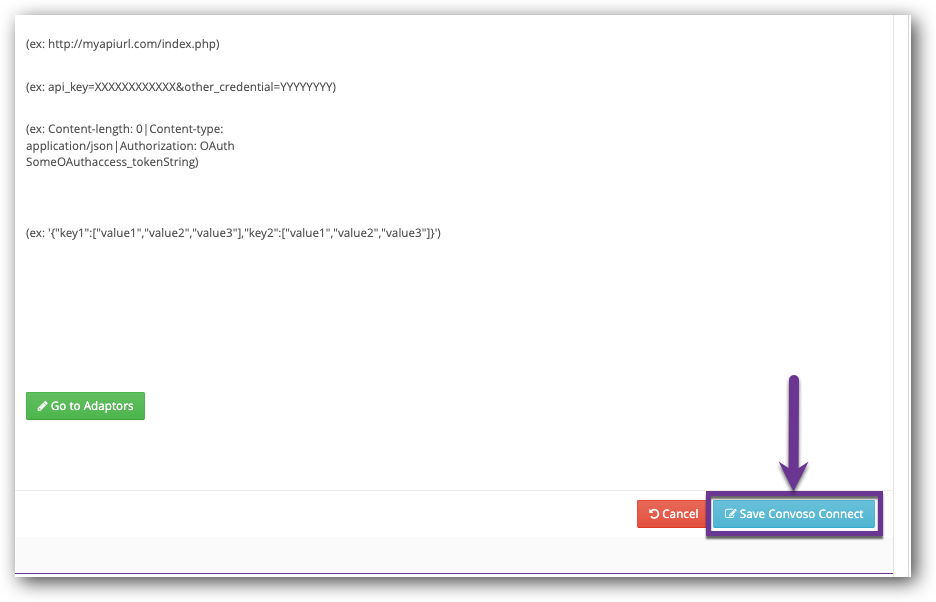

5.) Click the Save Convoso Connect button at the bottom of the Convoso Connect General Settings section.

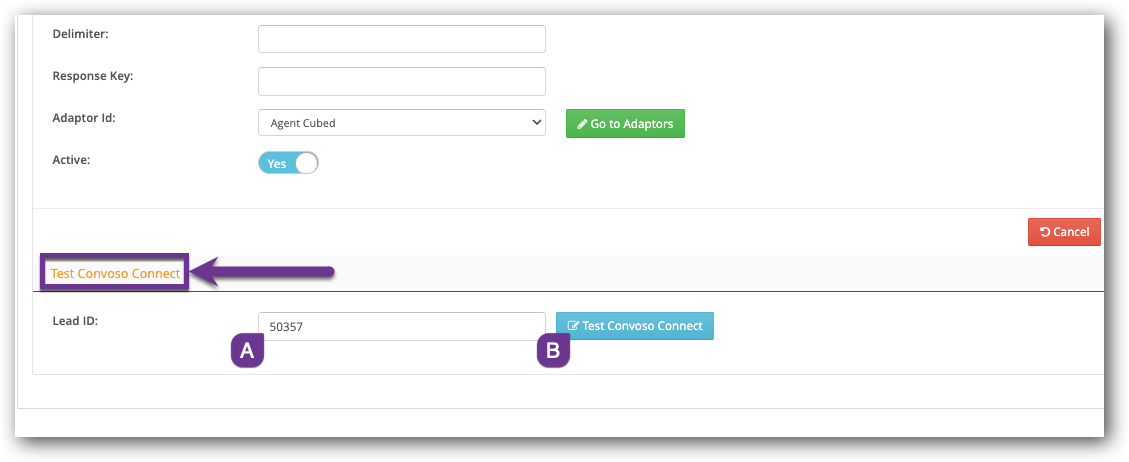

6.) Scroll down to the Test Convoso Connect section and test your configuration.

• (A) This field auto-fills with a Lead ID number.
• (B) Click the Test Convoso Connect button.

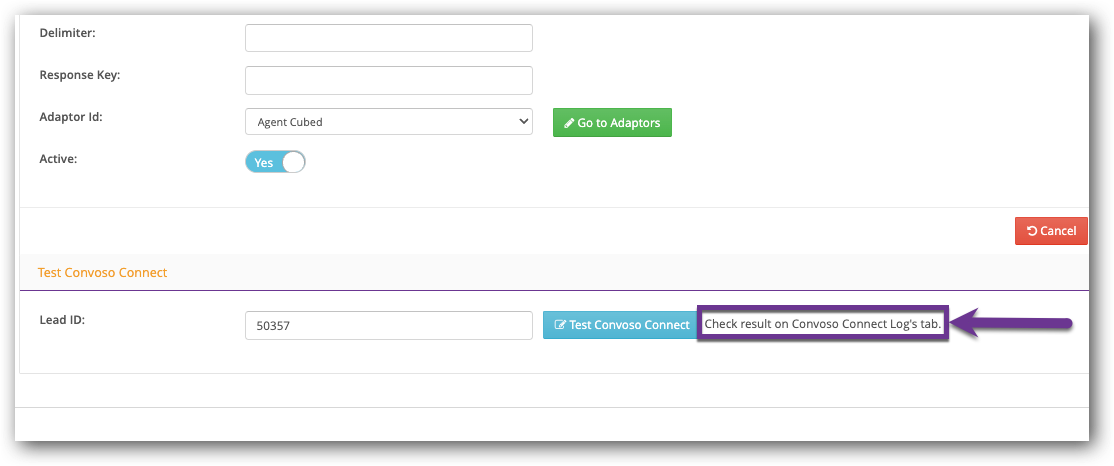

A message that says: "Check result on the Convoso Connect Logs tab" will appear.

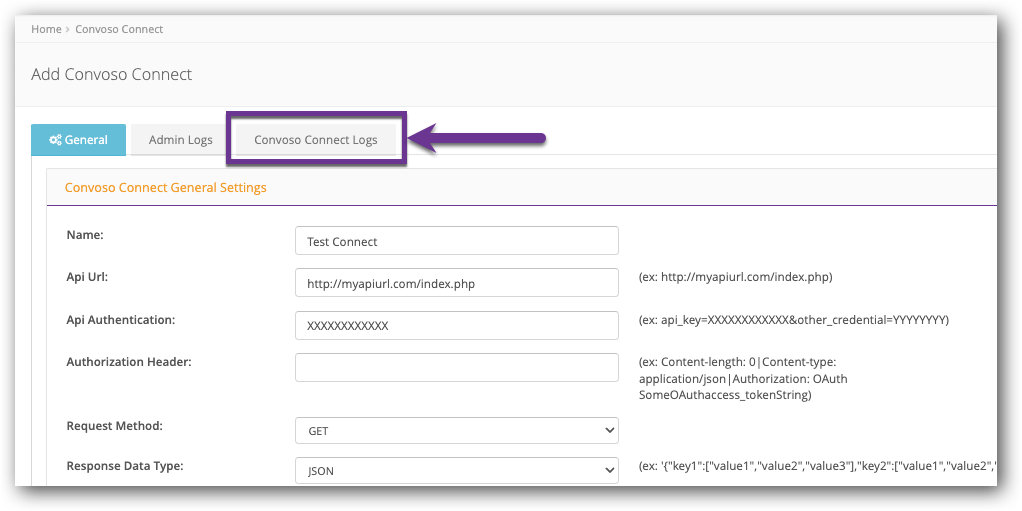

7.) Scroll up, and click the Convoso Connect Logs tab.

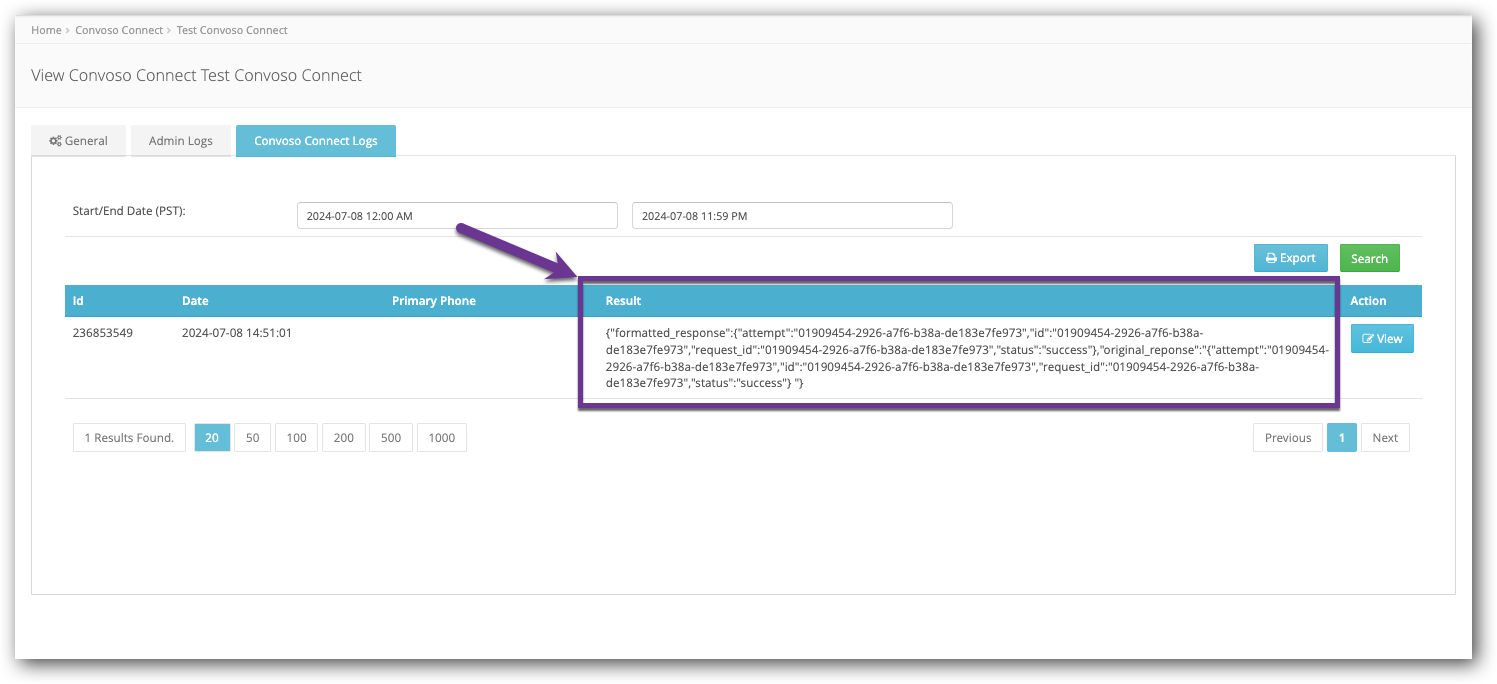

Your test results are in the Result column of the Convoso Connect Logs table.

Note: If your test returns null in the Results column, you will need to troubleshoot to determine why the apps are failing to communicate.
